Project Description

NEW 22m Motorsailer yacht designed to be a live on-board for Family use.

Construction is 95% completed!  Final tune ups and installations can be defined with her new owner.

This yacht will take her owner anywhere on the globe at safe and comfort.

She was built to CE certificate / module A (Ocean) with robust steel hull and clever mechanicals.

Accommodations will be perfect for family with huge master cabin at the aft with unsuite, large windows and lots of storge space for personal belongings.

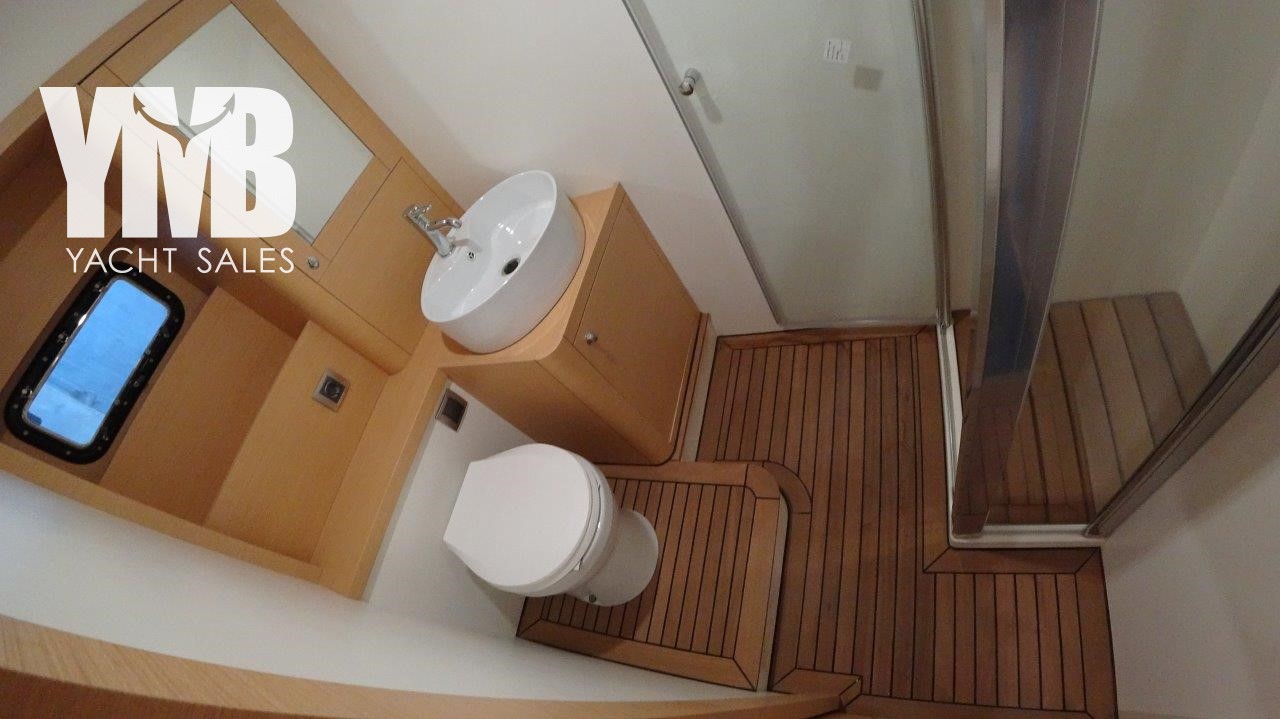

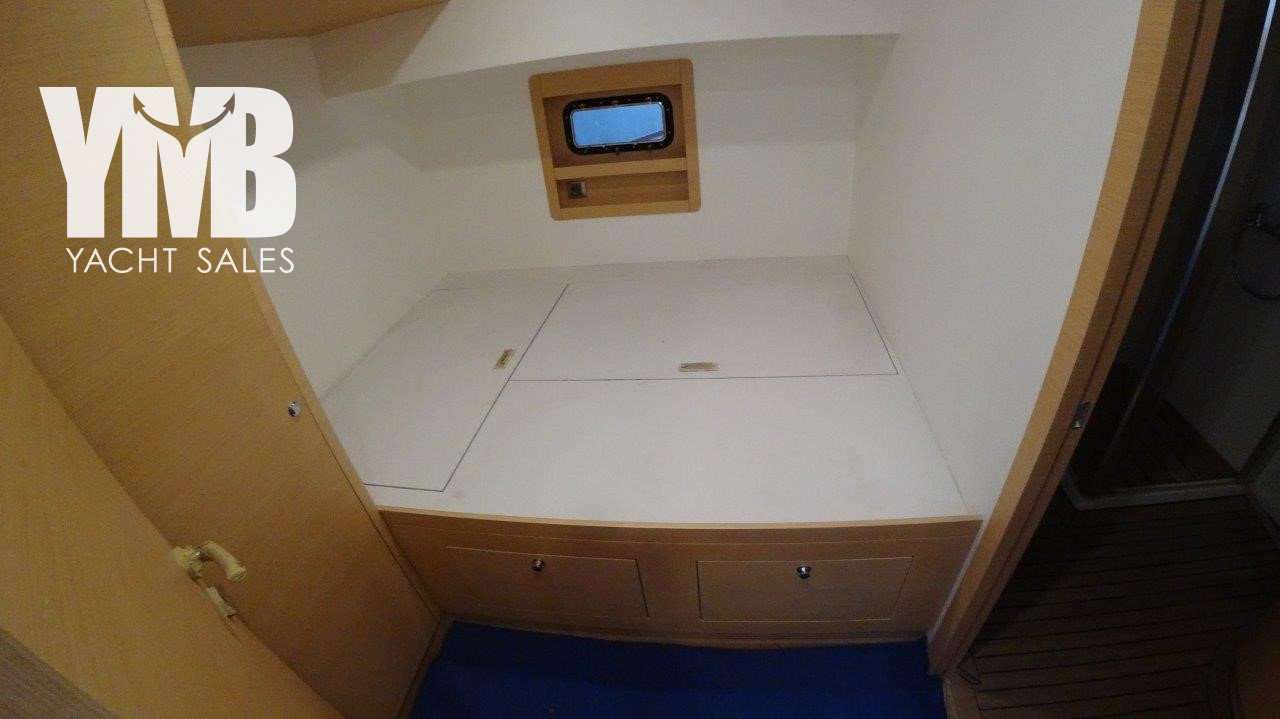

There are another 3 good size guests cabins each with its on bath room.

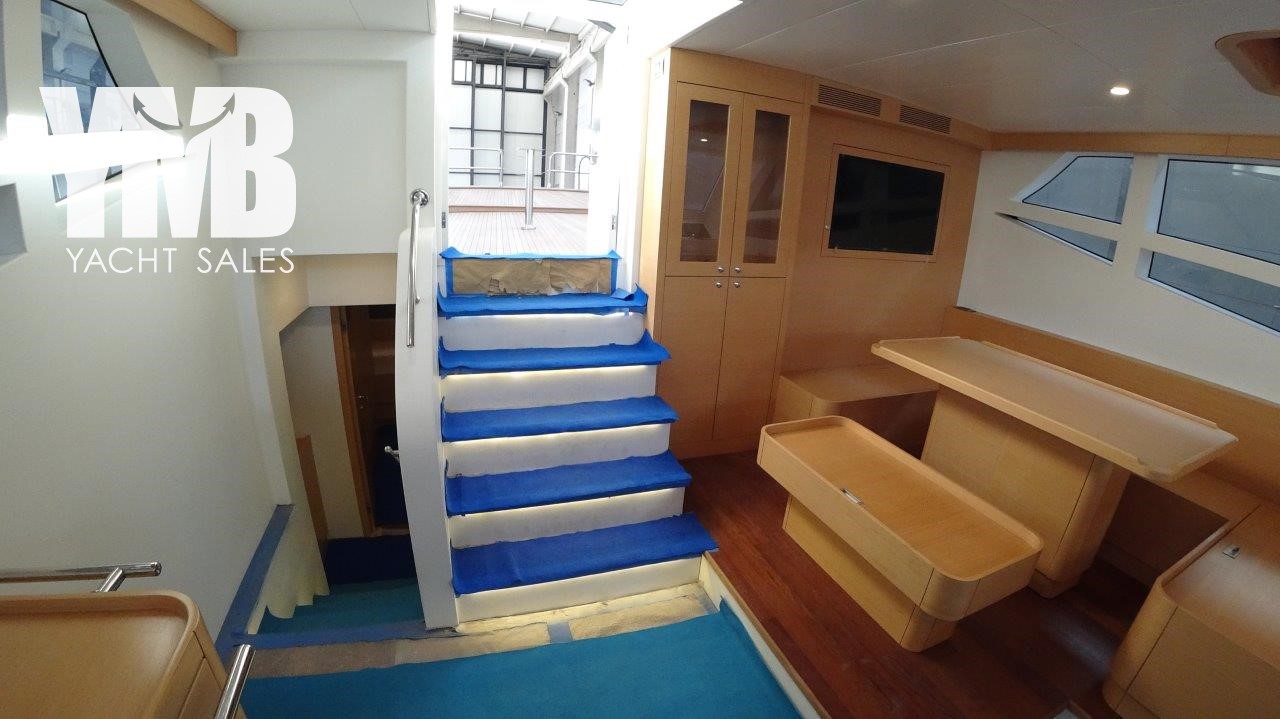

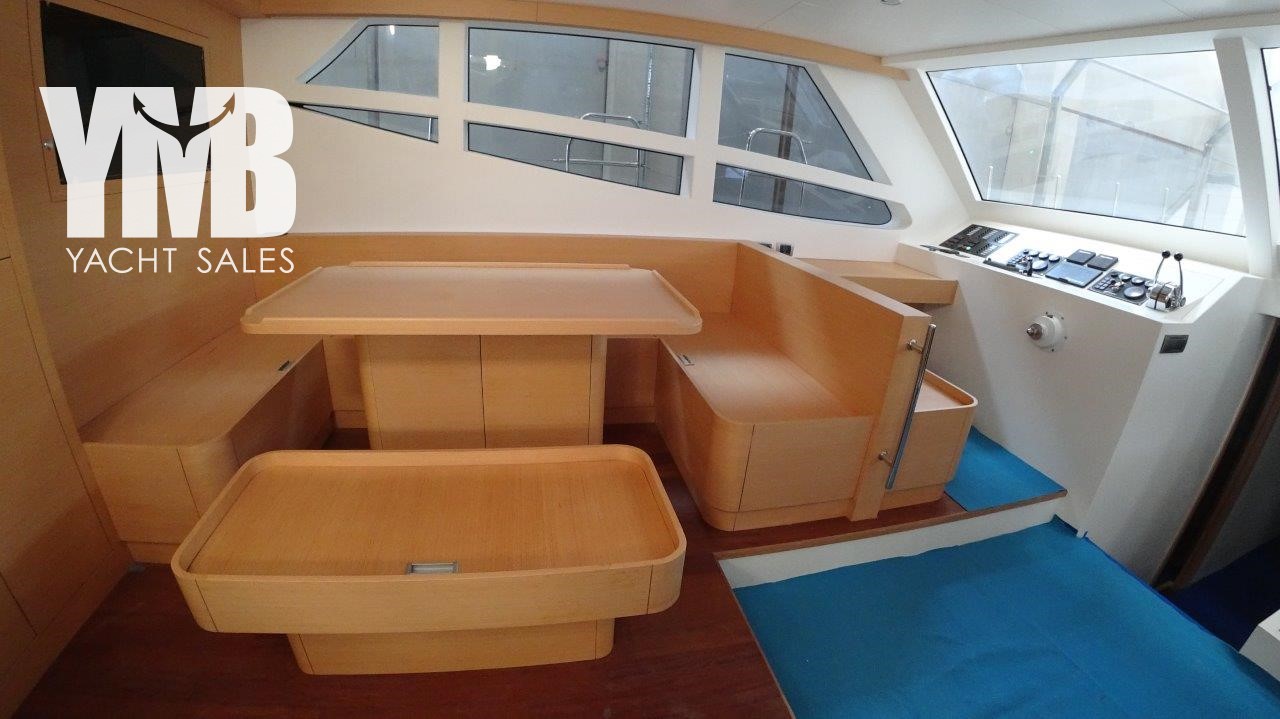

Amidships there is a large open space which the saloon and the galley are located and connected together in two levels.

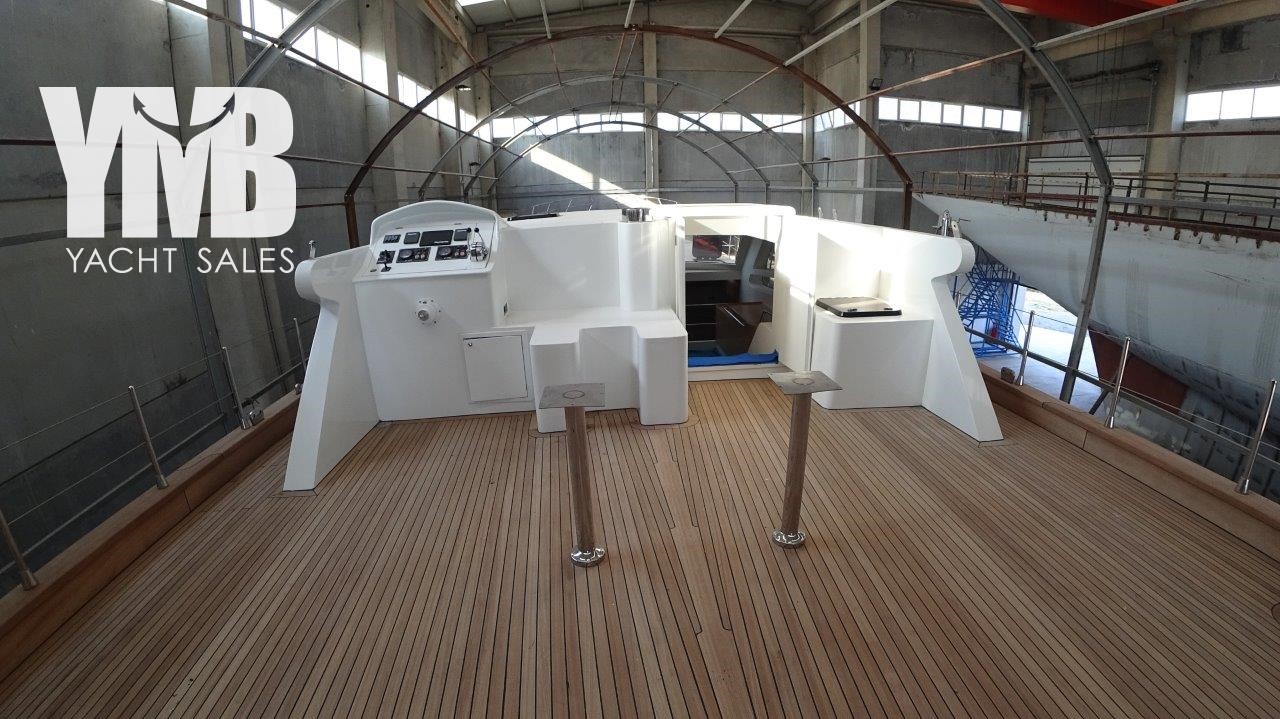

Outdoor areas are vast and offer plenty of space for sunbathing, dinning and yacht operation.

 General

 LOA                    22.00 m / 72.16 ft

Length ext.       24.79 m / 81.31 ft (inc. bow spirit)

LWL                  18.72 m / 61.40 ft

Beam                  6.30 m / 20.66 ft

Drat                      2.8 m

Builder               ARK YACHTS

Model                  Motor Sailor Yacht

Hull & Superstructure        Steel

Flag                     Not Determined

Main Engine      FPT (italy)  2 x 280 hp

Max Speed         12 knots

Cruising Speed   10 knots

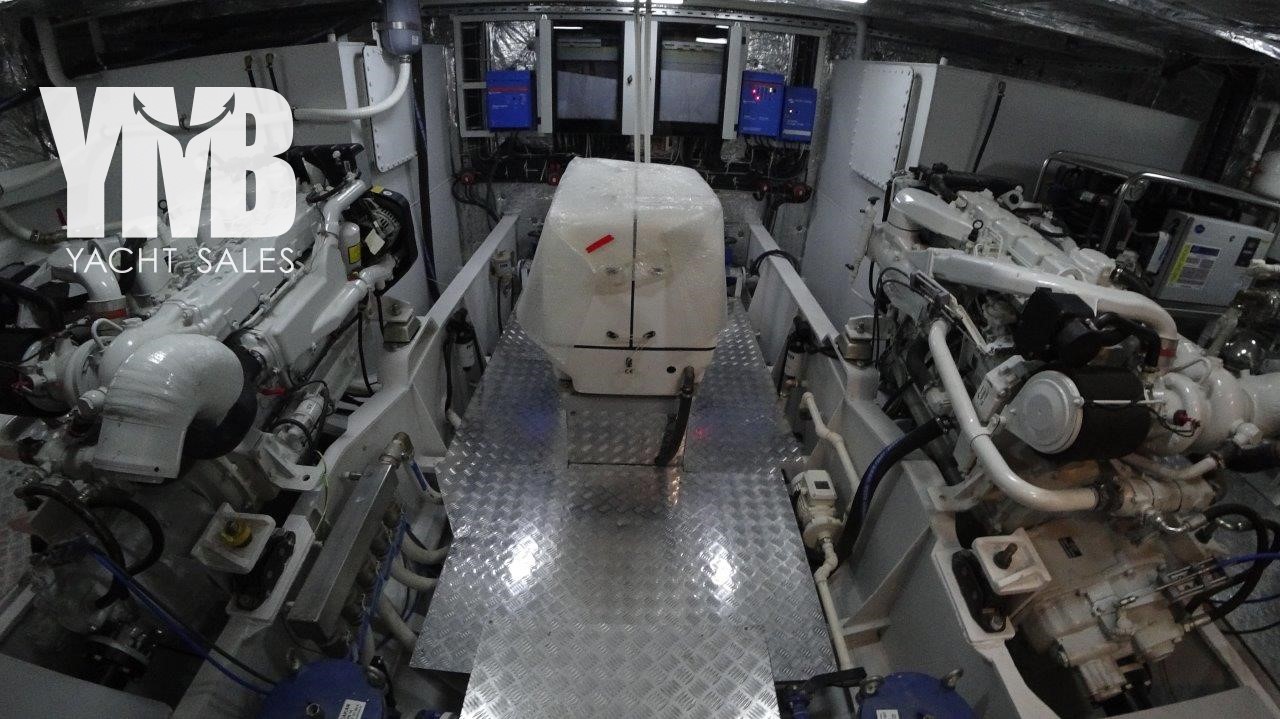

Mechanical Equipment

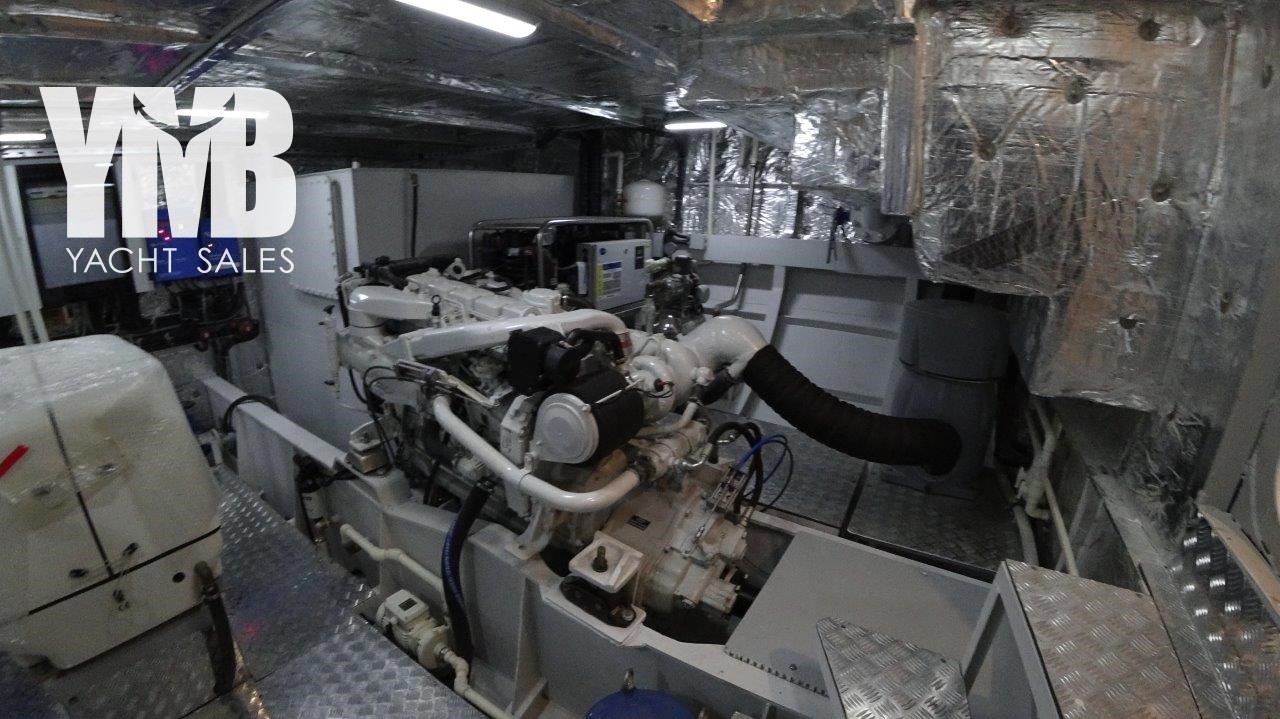

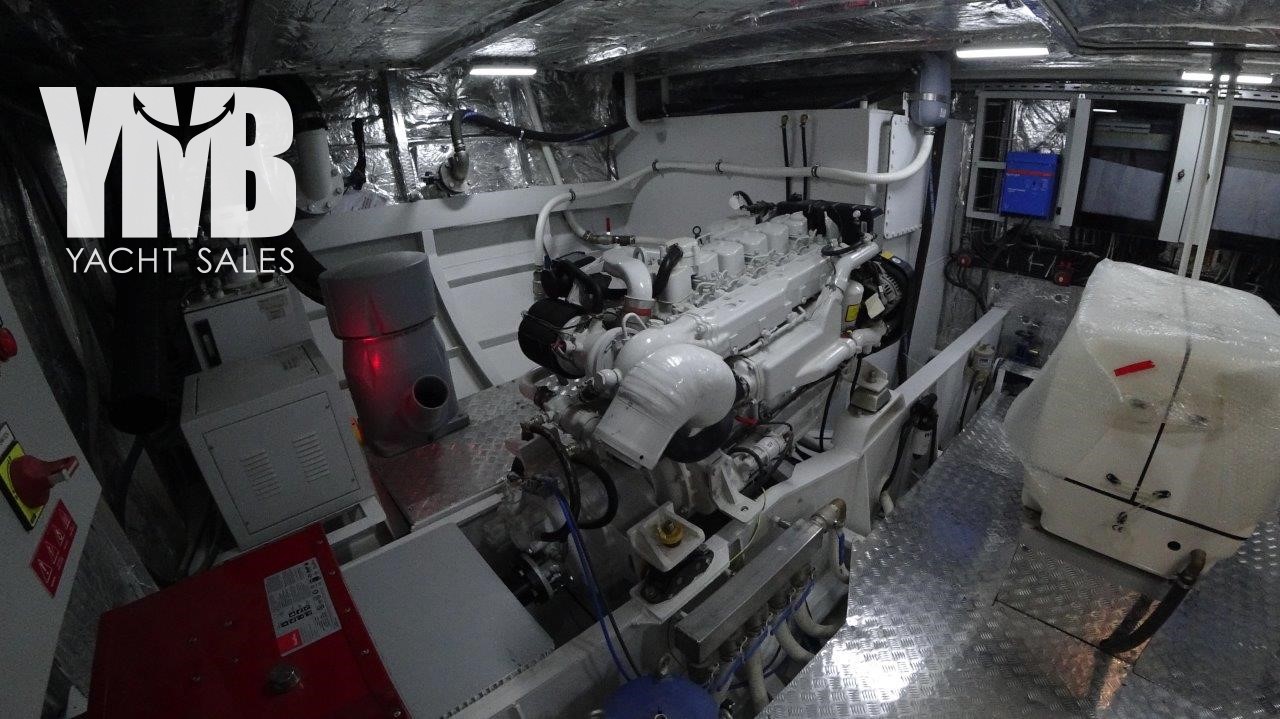

Engine                                               2 x 280 hp by FPT (Italy)

Gear                                                 Twin-disc

Generator                                        1 X 18 kw Paguro Italy

Propeller Shaft                                Duplex

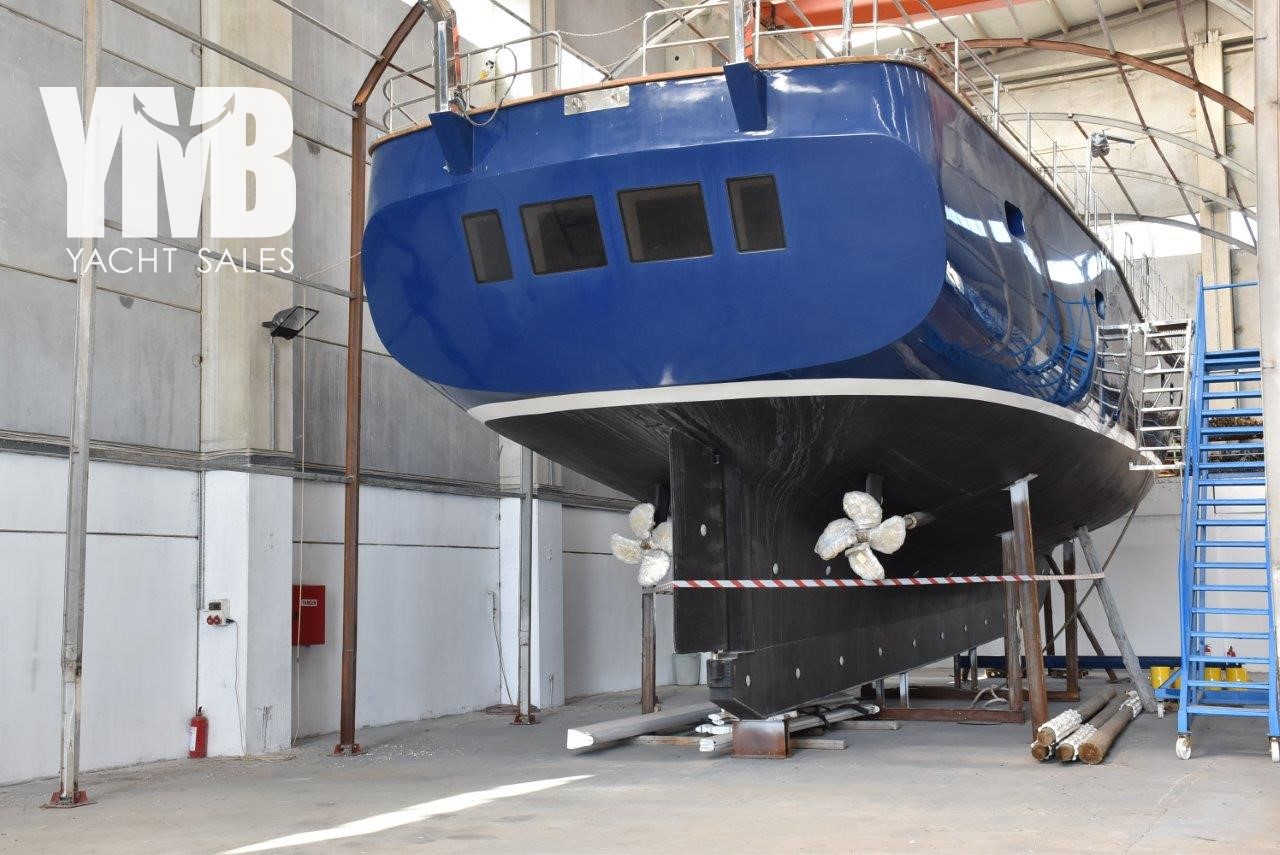

Propeller                                          2 X Fixed Pitch 4 blade propeller

Air Con. and Heating                      Condaria chilled water system

Bow Thruster                                   MAX POWEER (ELECTRICAL)

Bilge/Fire Pump                              TF marine

Emergency fire pump                     Tellarini

Water Pressure Pump                    TF marine

Hot Water Boiler & Heaters          Quick 60 liter

Main Engine Exhaust System         Vetus

Generator Exhaust System              Vetus

Engine Room Ventilation                 TF marine

Fuel Filters                                        SEPAR

Waste water macerator pumps      TF marine

Steering System                            Hydromarine Hydraulic Systems

Anchor Winches (Windlasses)         Lofrans

Tankage

Fuel                    4000 liter

Fresh Water       3500 liter

Black Water       1000 liter

Gray Water        1500 liter

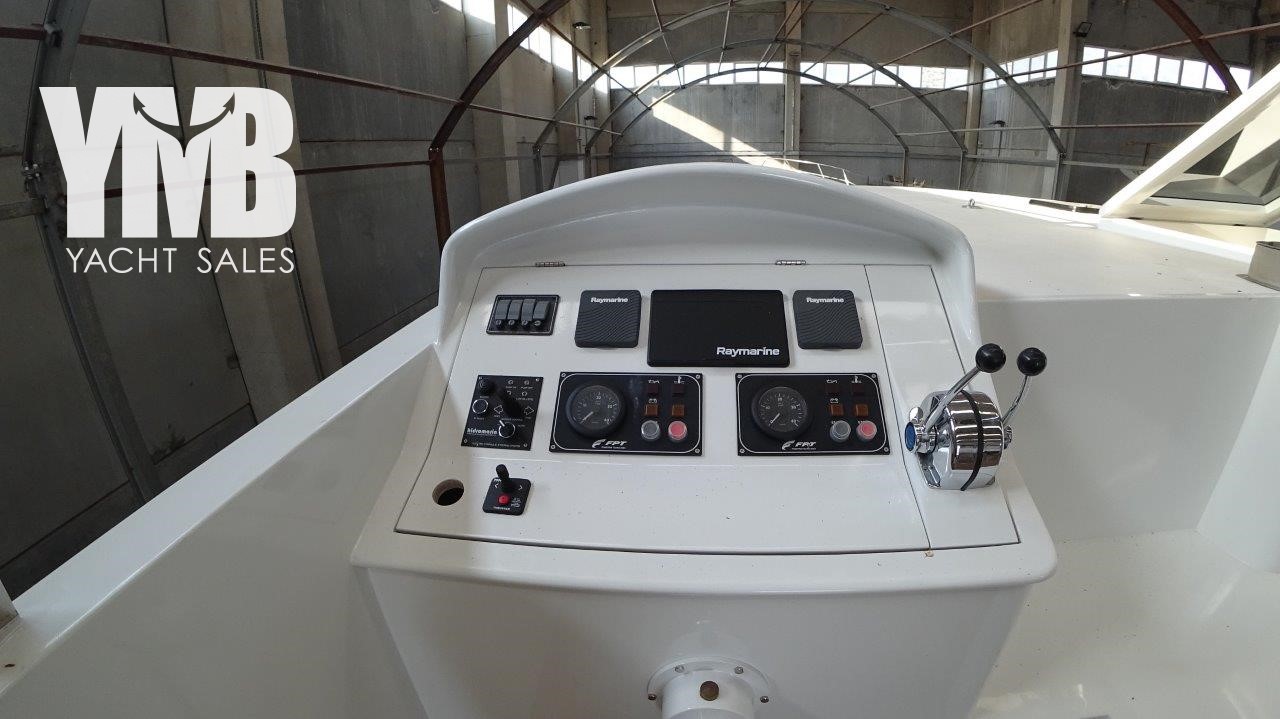

Navigation and Electronic Equipment

Radars                                                         Raymarine

Auto Pilot                                                    Raymarine

Multi Displays                                             Raymarine

Echosounder / speed log                          Raymarine

VHF                                                              Raymarine

Wind/speed indicator                                Raymarine

Navigation Lights                                       DHR

AIS                                                               Raymarine

Electrical Systems

Electrical Supplies                                      230 / 400 V – 50 hz

Starter Batteries for Engines & Gensets  YİĞİT batteries

Service & Emergency Batteries                 YİĞİT batteries

Inverter/Converter/ Battery Charger       Victron Energy

AC/DC Panels                                              Custom Made with “Schneider”

Safety Systems

Fire Fighting System                                   Fire pro (Engine room)

Fire Detection & Alarm System                Custom made

Deck Equipment

Passarella (Electro hydraulic driven)        Custom made

Bollards and Fairleads                               Stainless steel 316 Custom made

Deck Hatches                                              Bofor

Portholes                                                     Bofor

Bimini on aft deck                                       Custom made (operated with boom)

Sun awning on aft seating group                            Custom made

Paint System

Paint System                                                             Stoppani

Galley Equipment

Cook tops-4 burner                                    SIEMENS

Ovens                                                          Samsung

Refrigerator/Freezer                                 Arçelik

Laundry Washers                                       Vestel

Audio & Video System Systems

TV                                                                Samsung

Stereo                                                          Adaptable with I phone

Rigging

Type                                                                Katch

MAST                                                           2 X Aluminum MAST

Sails                                                                TBD
